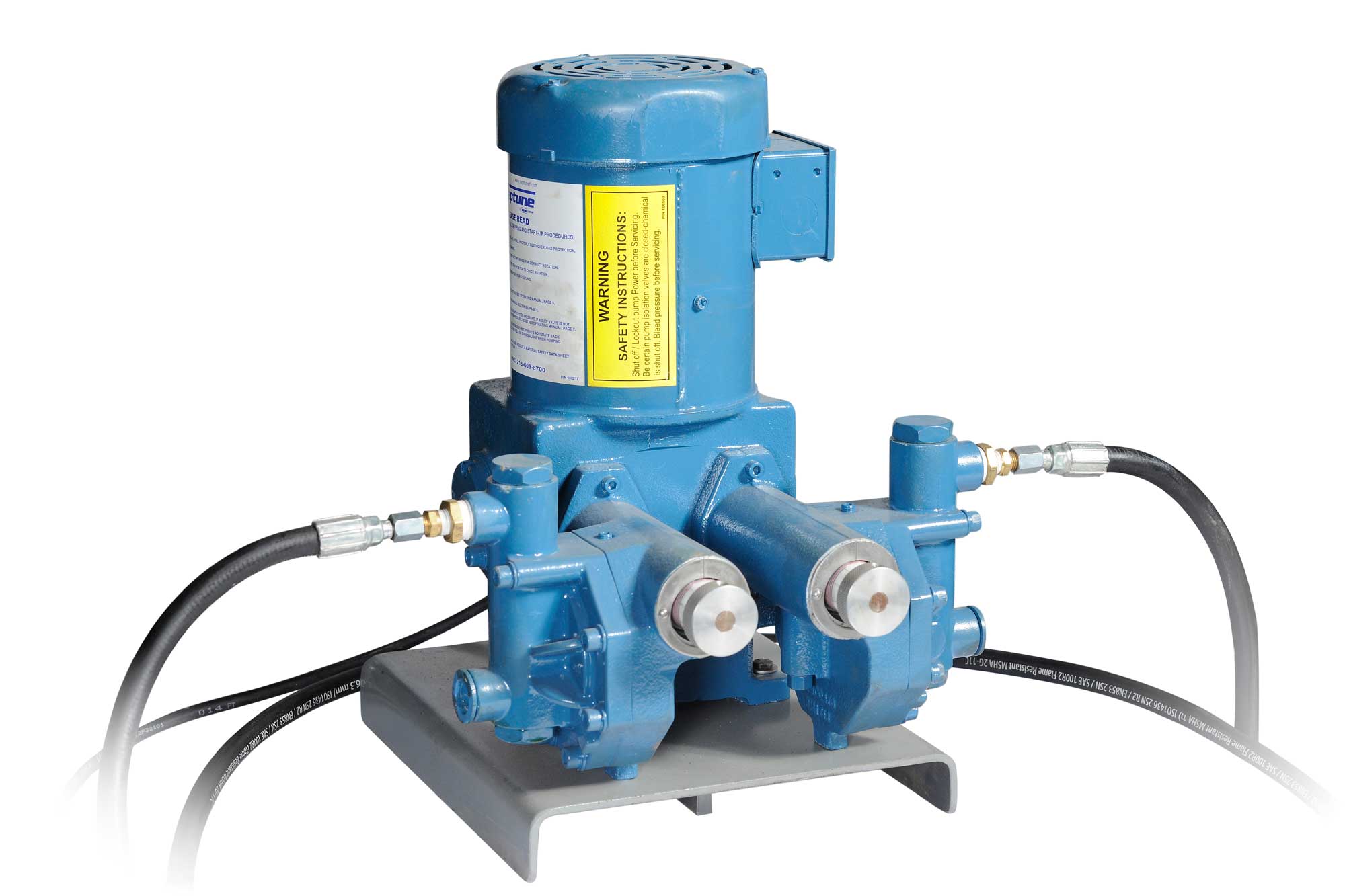

- Die Lube
- Standard motor - TEFC: 1/3 HP -1ph-115 VAC-60c - totally enclosed fan cooled with built-in automatic thermal overload.
- Ten turn micrometer dial calibrated in 1% increments.
- Bright color contrasted dial protected from corrosion by clear PVC covering.
- Stroke mechanism moves only when adjustment is made.

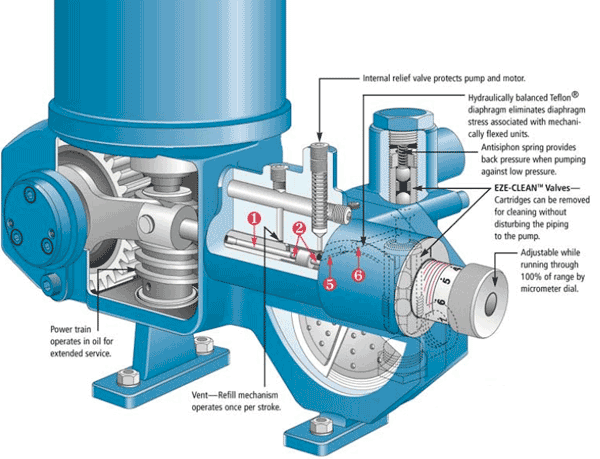

- Piston is powered through complete stroke length at all capacity adjustments eliminating stress, wear, and shock of lost motion designs.

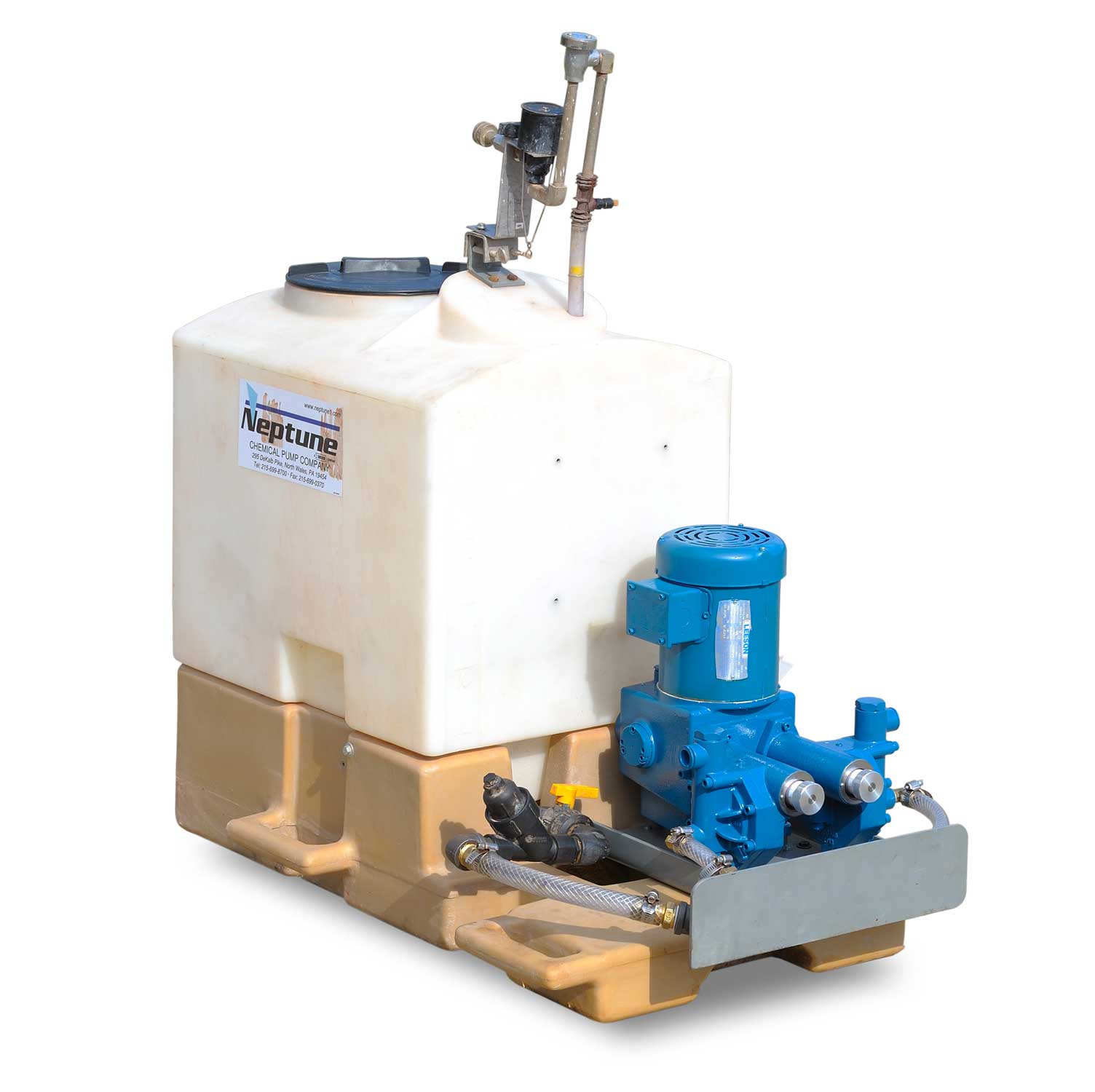

- Available individually or with a 30 gallon holding tank complete with a proportioning system to assure accurate mixes with water-soluble lubricants.
- This pump also works extremely well with oil based lubricants. Pre-set pressure of 800psi
PDF AVAILBLE
Hydrominder Model # 515 Instruction Sheet →
